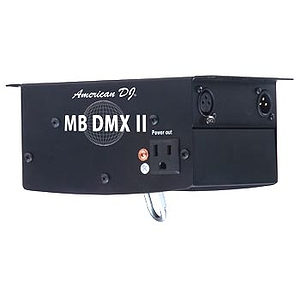

The MB DMX II is a unique intelligent mirror ball motor that may be operated in three modes; DMX-512, Stand-Alone, or Master/Slave. The MB DMX II allows you to control the operation of a mirror ball motor as well as the lamps via DMX operation. You may also link several MB DMX II motors together to obtain universal speed and rotation.
Features:
- 2 DMX Channels
- Channel 1: Adjustable motor speed and direction control of mirror ball
- Channel 2: Turns On/Off pinspots
- For use with up to a 20-inch mirror ball
- Circuit breaker protection (no need to change fuses)
- XLR In/Out
- Master/slave control: Up to 4 MB DMX units can be diasy-chained together for
synchronized motor rotation and universal speed, resulting in dramatic visual effects
- 1/4" socket for On/Off control with optional Mini/C controller (sold separately)
- Micro-Stepping Motors for Smooth Rotation
- DMX-512 Protocol Compatible
- Variable Head Rotation Speed
- Built-In Rigging Point
- Stand-Alone or Master/Slave Operation
- Linkable
- Two Built-In DMX Controlled AC Power Sockets
Specifications:
- Voltage*: 120v~60Hz or 220v~50/60Hz
- Dimensions: 12.5"(H) x 11.25"(W) x 8.5"(D)
- Weight: 4 Lbs.
- Breaker: 3 Amp
- Duty Cycle: None
- Working Position: Any Safe, Secure Position
- Warranty: 1 Year (365 days)
* Voltage is preset at the factory and is not user selectable.
